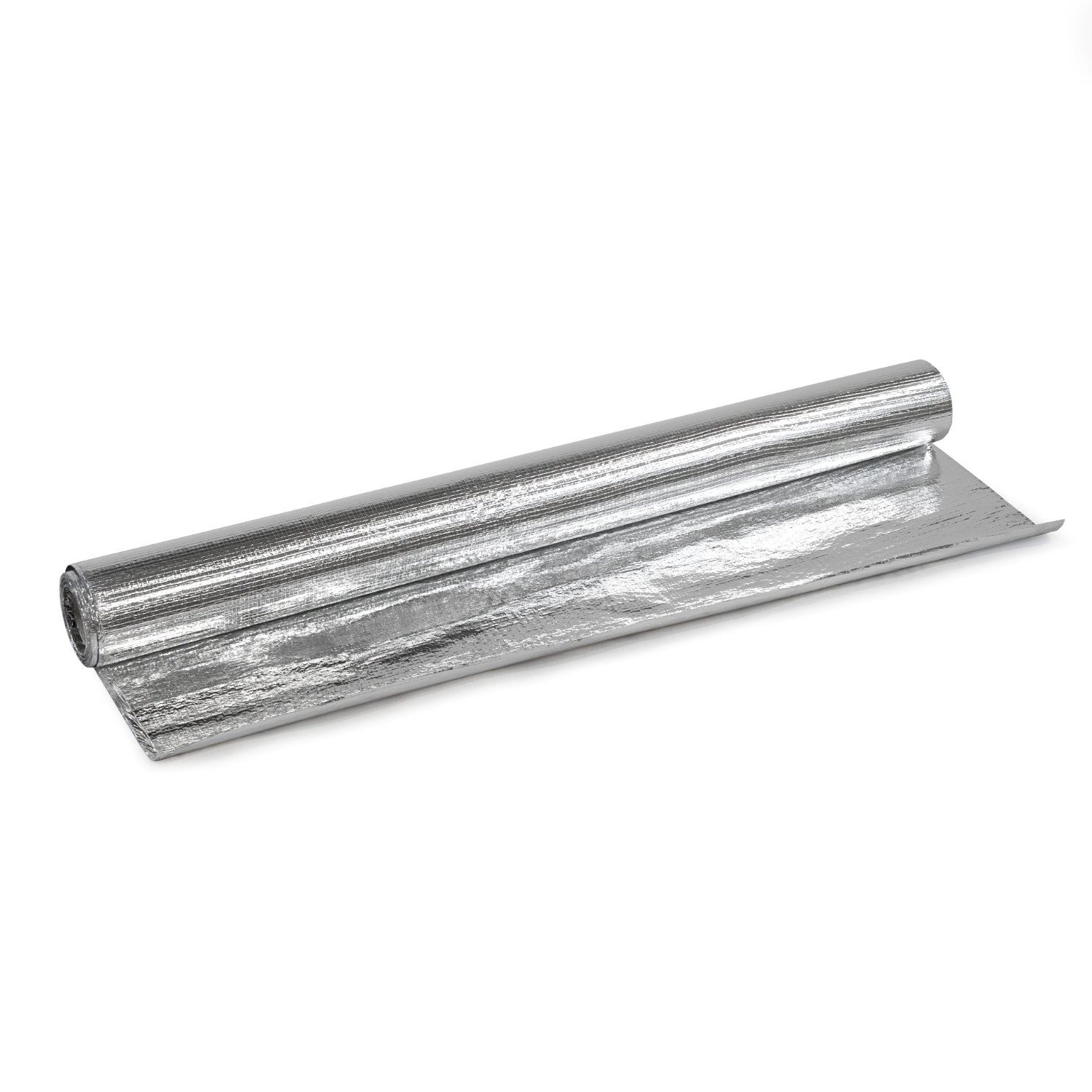

Vapor Barrier Foil

Introducing a vapor barrier designed to counter both condensation and evaporation. This anti-corrosive vapor barrier sheet acts as a shield, protecting materials in the building envelope from moisture damage.

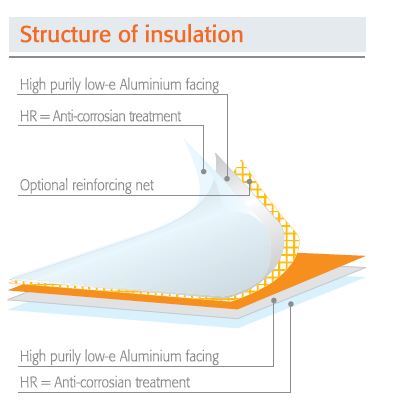

Constructed from two sheets of pure aluminum with an integrated mesh for mechanical reinforcement, it not only extends the lifespan of consumable products but also enhances the overall comfort within the building space.









  • Effortless, straightforward, and rapid installation facilitated by a staple gun or drill screws.






Our high resistance anti corrosion treatment is applied to all Polynum™ products for durable performance under all climate conditions including: coastal area, high humidity, livestock buildings.

Applications:

  • Utilized as a vapor barrier sheet beneath the waterproofing of flat roofs.

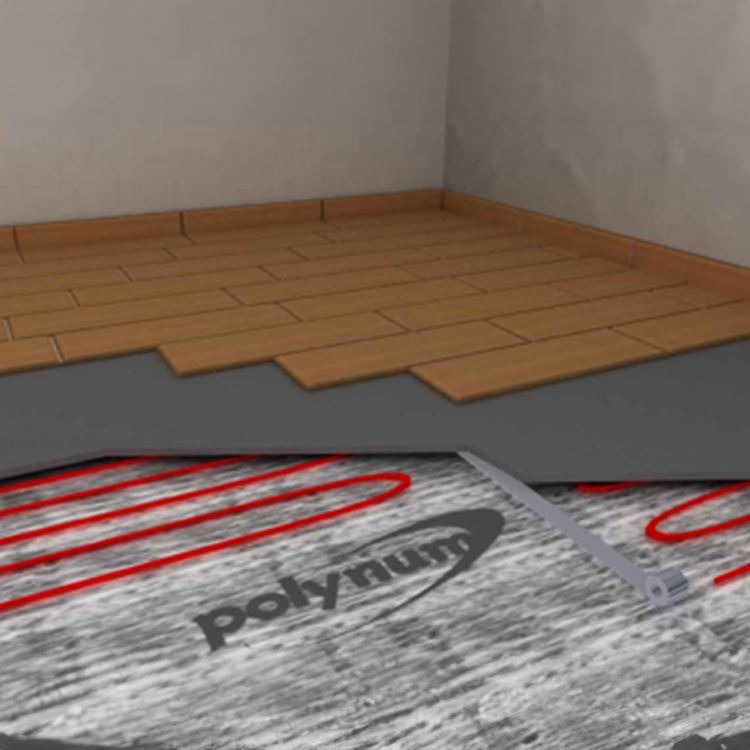

  • Employed as a reflector under heating elements in underfloor heating systems.

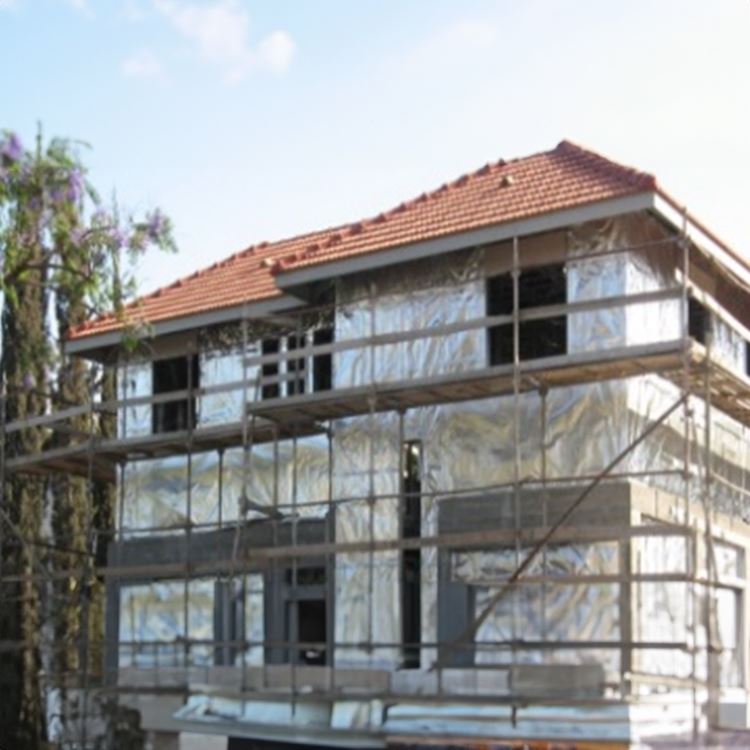

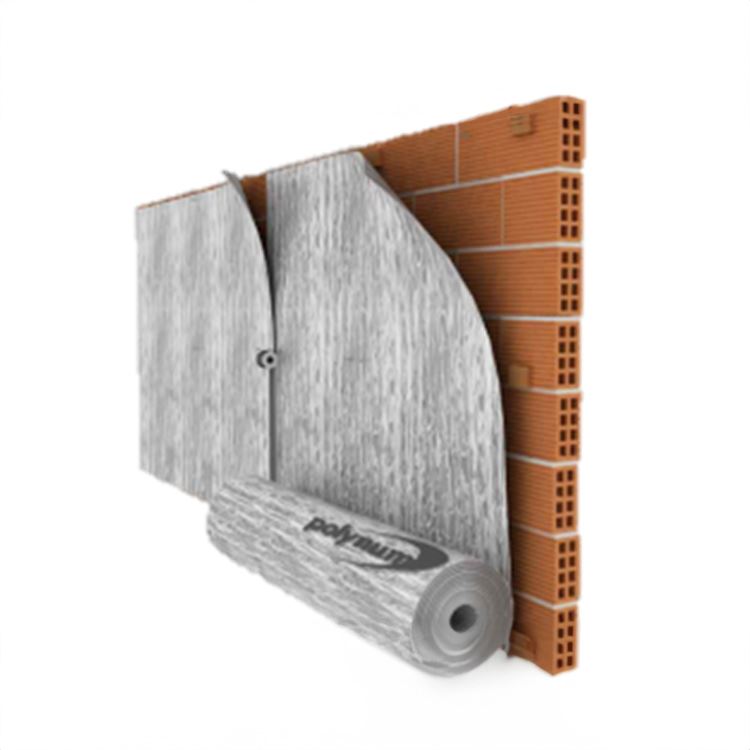

  • Acts as a vapor barrier to safeguard perishable insulation within the building envelope.

Property

Units

Value

Regular

Reinforced

Nominal thickness

mm

0.12



Standard Roll Size

mxm

1.2x 50



Emissivity (ASTM C 1371)



0.05



Reflectivity



0.95



Heat resistance (R) — under roof

m2.0c/vv

1.44



Tensile strength @peak (ASTM C-1336)

g/cm-width

2700   I

7000

2600   I

7800

Thermal Integrity of Vapor Barrier

 (ASTM C-1263)

@-29°C

No cracks



to +60°C

No delamination





Moisture Vapor Transmission Rate

(TNO/PIRA @38°C,900/oR.H.)

g/m2 day

0.001





Fungal Resistance Test (ASTM C 1338)



No fungal growth





Corrosion Resistance (Internal Test)

Conc.HCI

High Resistance*









Relevant Documents
pdf Data Sheet
For more information about the product - contact us
Light weight & Thin
Reflect 97% IR
Easy to Install
Against condensation Resistant to moisture
Saving Energy
Green Building
