Thermal insulation for Roofs & Walls

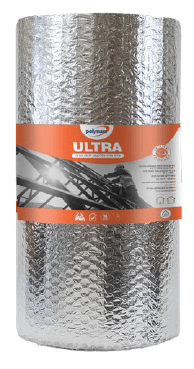

Experience revolutionary, advanced, and powerful thermal insulation that enhances the overall comfort of your structure. Our Polynum™ Ultra insulation is designed to significantly reduce heat loss during winter and minimize heat penetration in the summer. It goes beyond thermal benefits, contributing to acoustic insulation and aiding in sound absorption (NRC).

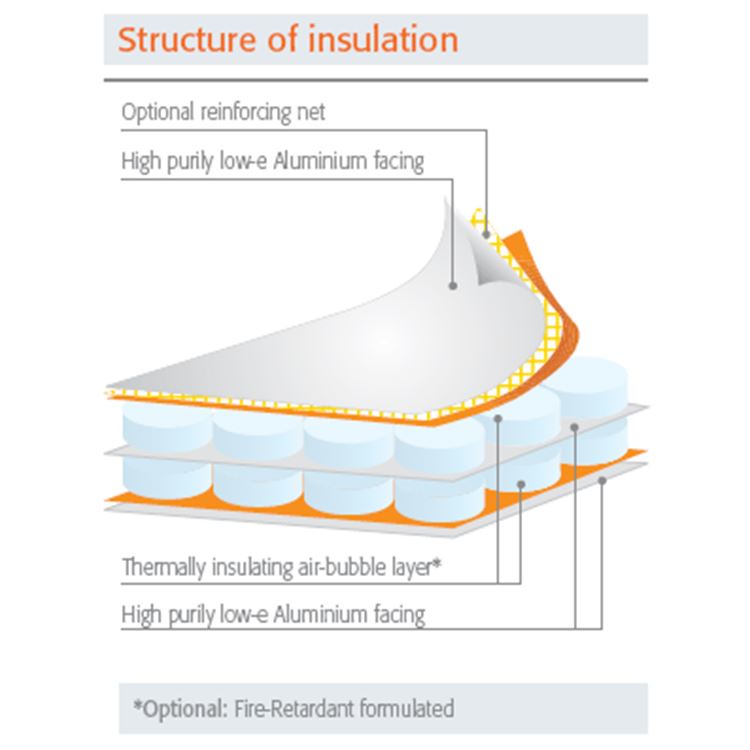

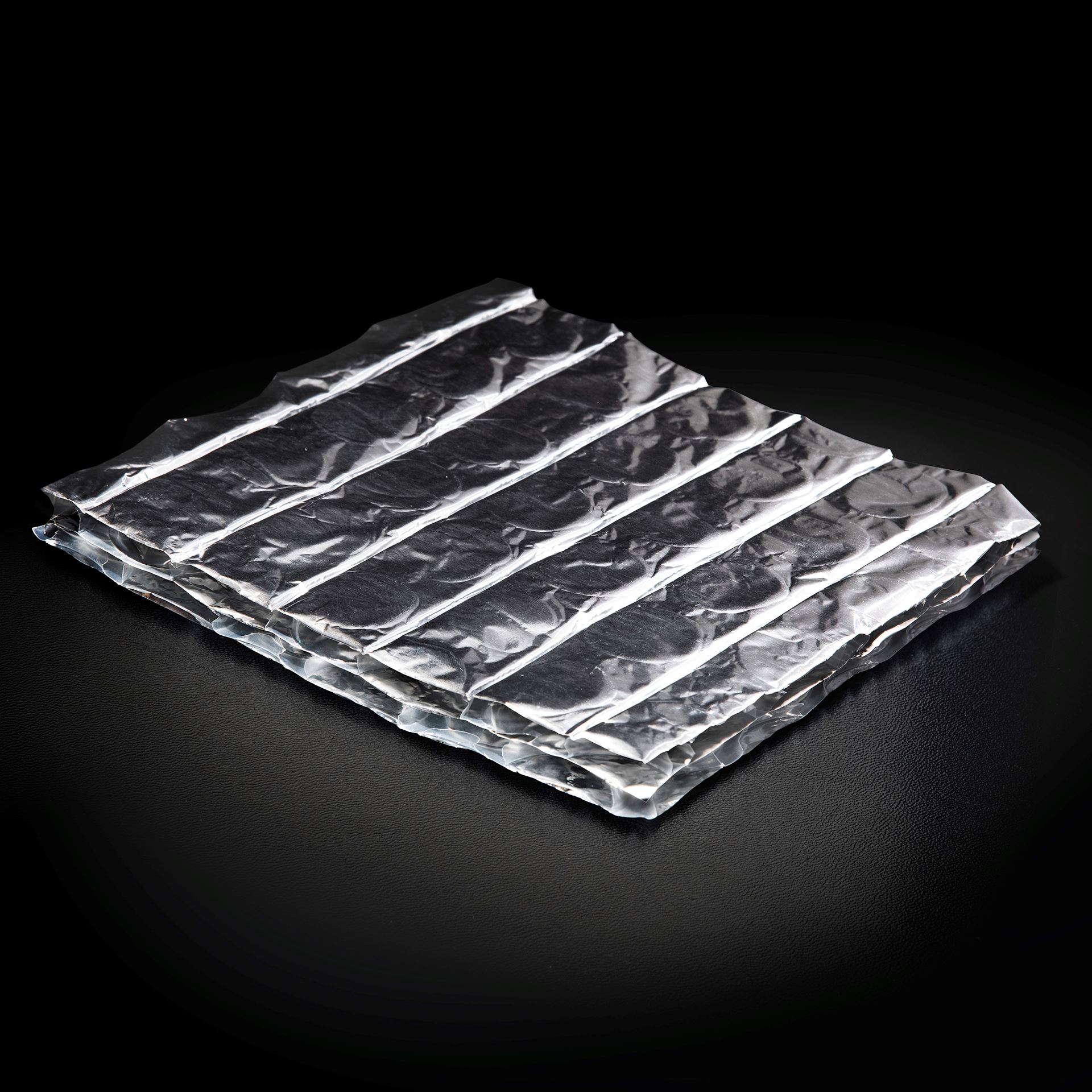

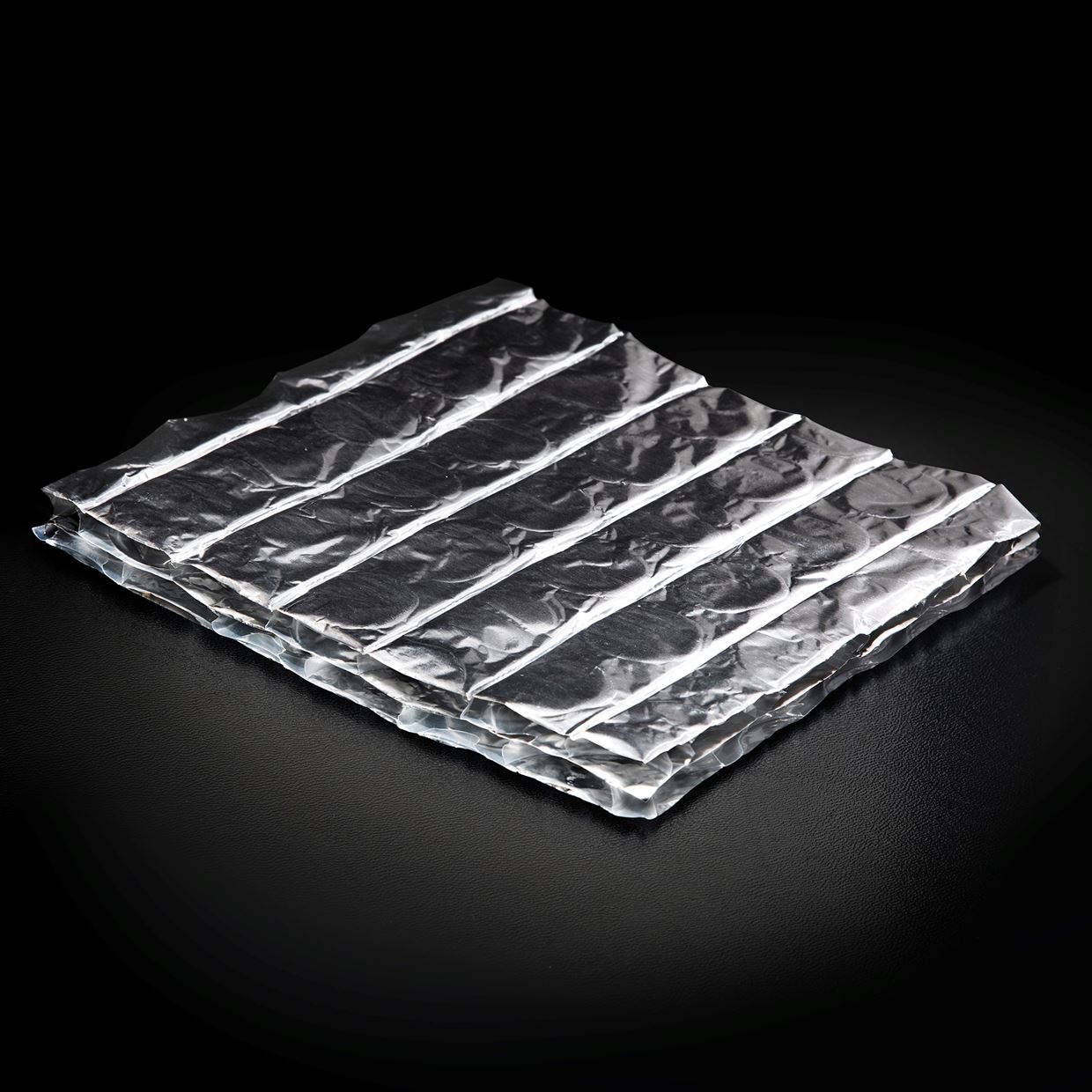

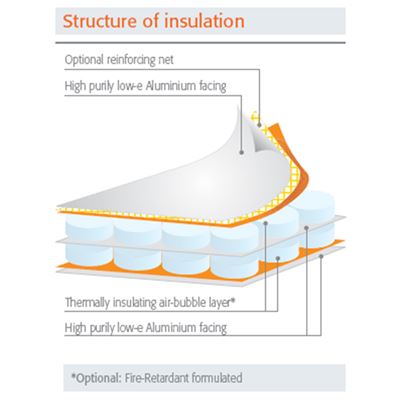

The multi-layered Polynum™ Ultra insulation sheet incorporates reflective radiation barriers (97% IR) using pure aluminum foil. Complemented by a double layer of large air bubbles, an additional aluminum layer is strategically placed between these layers, ensuring sustained effectiveness even in the presence of dust accumulation on the outer layers.

The Ultimate Insulation Experience!

  1. Robust insulation with an exceptionally high level of thermal resistance.
  2. Drastically lowers the building's energy consumption - cost savings.
  3. Water & moisture-resistant, functioning as an effective vapor barrier.
  4. Safeguarded against dust
  5. Featuring an anti-corrosive varnish coating.
  6. Low emissivity - 5%.
  7. Free from Fibers, toxic metals and adhesives, prioritizing safety for installers and users, ensuring a secure environment.
  8. Meets green construction standards, enhancing building comfort with added acoustic insulation.









  • Easy, simple and fast installation using a staple gun or self-drilling screws.
  • Option to add reinforcing NET for mechanical strength.
  • Option to add flame retardant.

Applications:

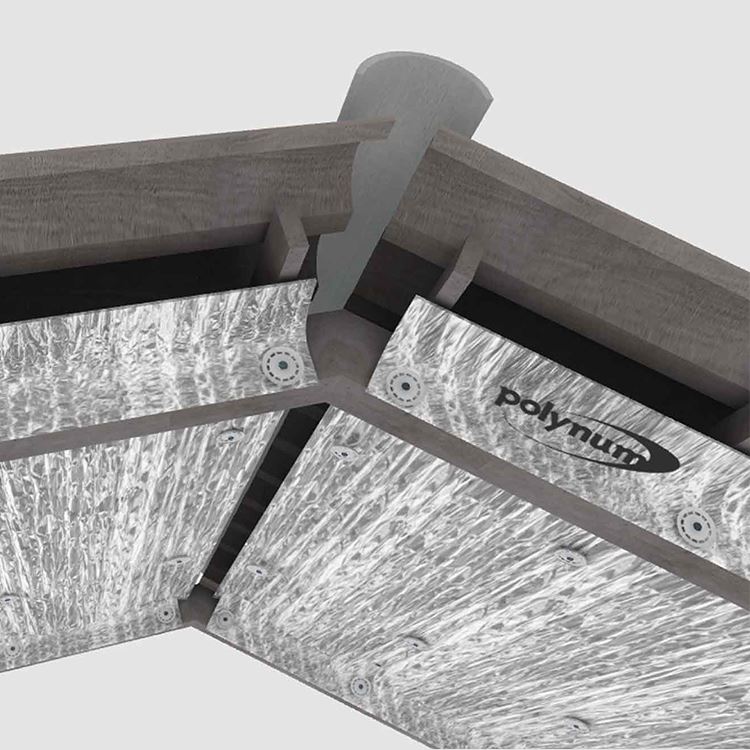

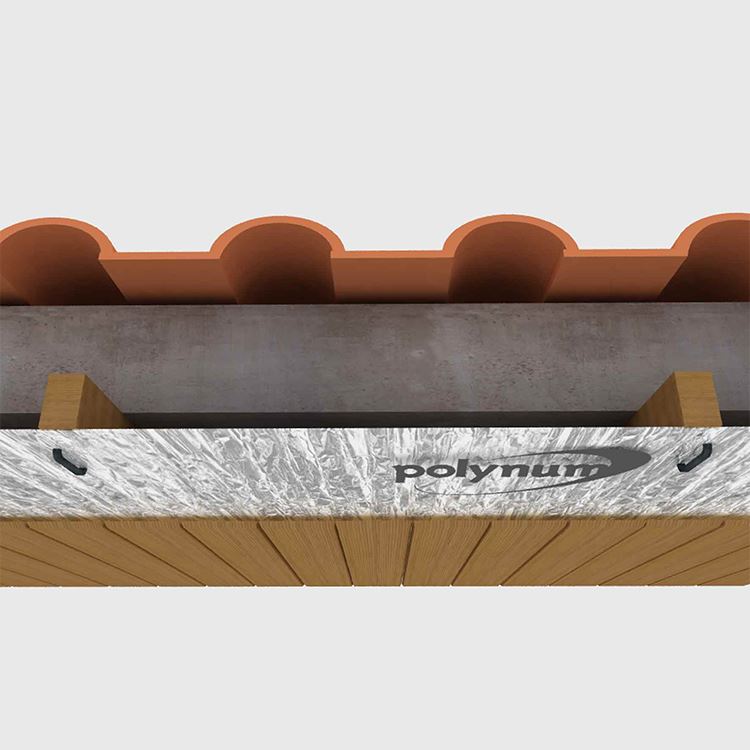

  • Thermal and acoustic insulation for pitched roofs in private buildings, including tile roofs and attics.
  • Thermal and acoustic insulation for lowered ceilings.
  • Thermal and acoustic insulation for industrialized roofs in commercial and industrial buildings.

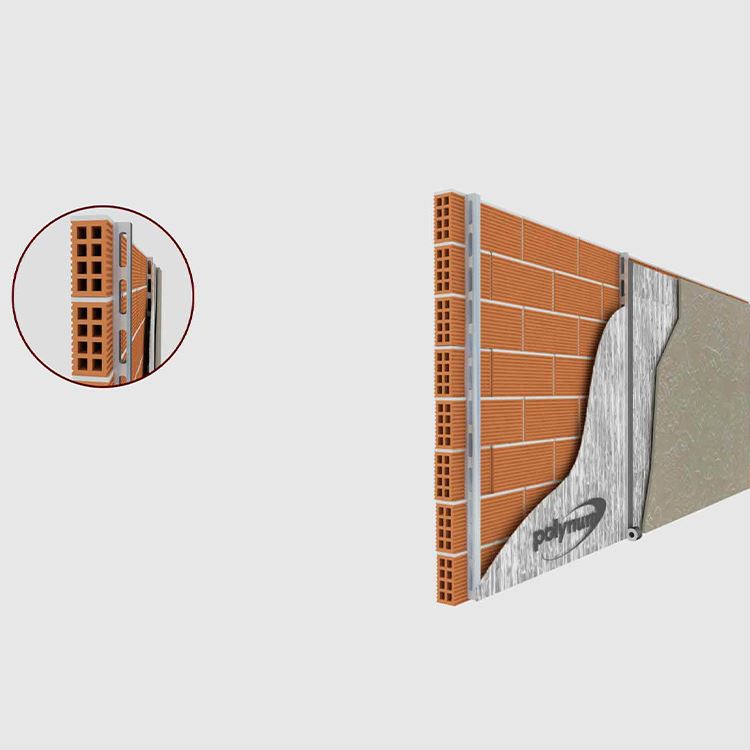

  • Thermal and acoustic insulation for internal plaster walls.

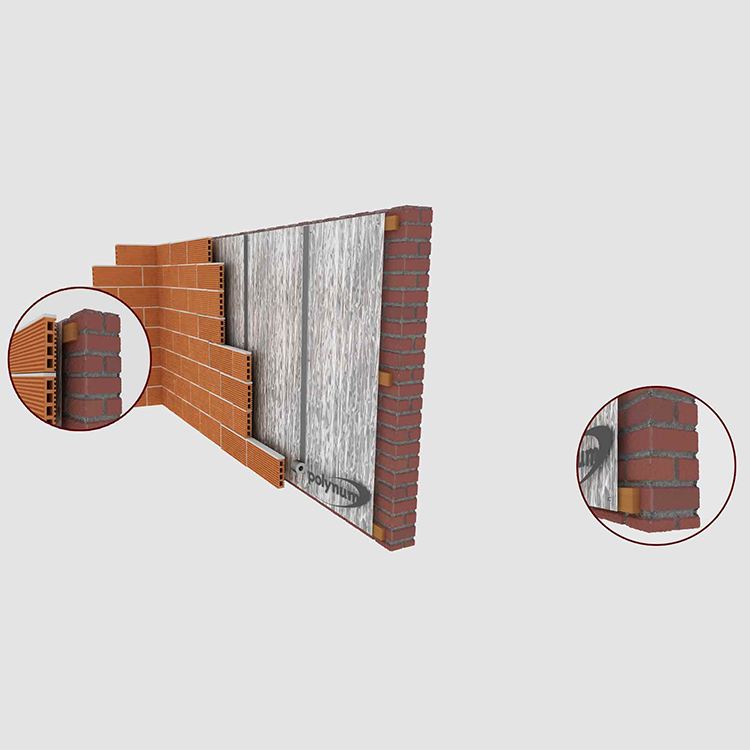

  • Dual-layer thermal and acoustic insulation for walls.
  • Thermal insulation for light construction buildings, metal structures, mobile buildings, and trailers.



Property

Units

Value

Nominal thickness:

mm

16.0mm  +/-0.5

Standard Roll Size

m X m

1.2m X 20m

Emissivity (ASTM C 1371)



0.05

Reflectivity (ASTM C 1371)



0.95

Heat resistance (R)* – under roof

Down  (ASTM C 1363)

m²·ºC/W

3.72

Heat resistance (R)*– Industrial Commercial Roof (with celling)

m²·ºC/W

4.9

Heat resistance (R)*– Industrial Commercial Roof (Open)

m²·ºC/W

2.7

Heat resistance (R) – Concrete wall/ Plaster board

m²·ºC/W

2.5

Noise Reduction Coefficient (ASTM E-384)

%

55%

Fungal resistance



No fungal growth



Our high resistance anti corrosion treatment is applied to all Polynum™ products for durable performance under all climate conditions including: coastal area, high humidity, livestock buildings.

Relevant Documents
pdf Data Sheet
For more information about the product - contact us
Light weight & Thin
Reflect 97% IR
Thermal Insulation
Easy to Install
Against condensation Resistant to moisture
Durability for Years
Saving Energy
Green Building
